The Deposit Services data model describes the interaction between Deposit Services and the PASS data model, detailing how various resources, such as Submission, Repository, Deposit, and RepositoryCopy are managed. Additionally, it outlines the internal data model, configuration, packaging, and transport mechanisms used by Deposit Services to facilitate the transfer and validation of submissions to downstream repositories.
Deposit Services uses objects in the PASS data model, which are distinct from the Deposit Services' internal model. Objects in the PASS data model are persisted in the PASS core service. Thus, any interaction with PASS resources will require CRUD operations (using the PassClient) by Deposit Services.
PASS objects used by Deposit Services are:
Submission: Read by Deposit Services, updates Submission.AggregatedDepositStatus.
Repository: Only ever read by Deposit Services, never modified.
Deposit: Created and modified by Deposit Services.
RepositoryCopy: Created and modified by Deposit Services. Note that the NIHMS loader also creates RepositoryCopy resources.
Each Submission resource links to one or more Repository resources. Deposit Services will create a Deposit and RepositoryCopy resource for each Repository linked to the Submission. Deposit Services will attempt to deposit to the downstream system represented by the Repository. The status of a deposit to a downstream repository will be recorded on the Deposit resource. That is to say, the Deposit records the transaction and its success or failure with a Repository, and the RepositoryCopy records where the Repository stored the content of the Deposit.

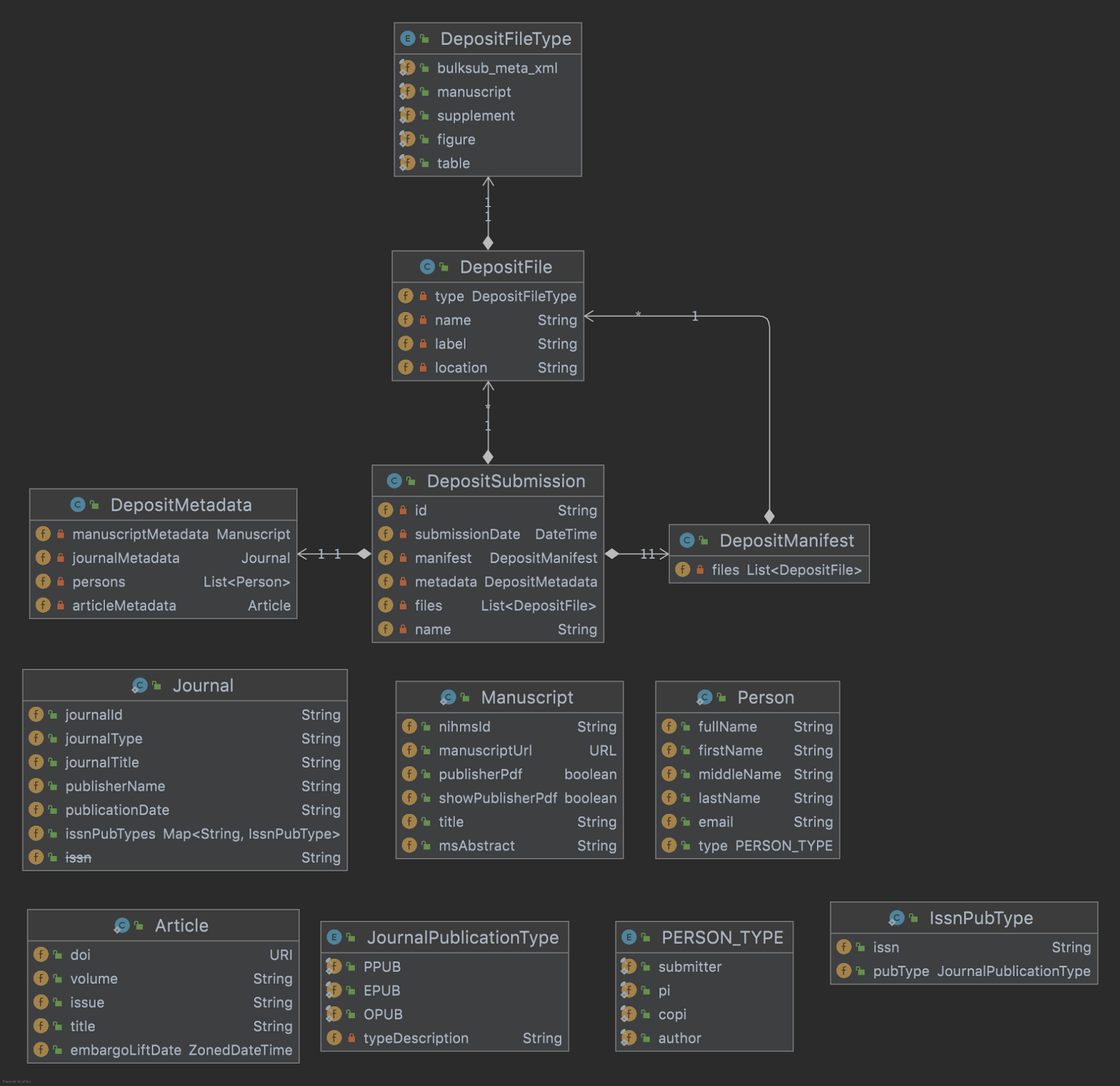

Deposit Services has an internal object model that is distinct from the PASS data model. Instances of the internal object model are not persisted in the PASS repository, or anywhere else. Upon receipt of a Submission (i.e. the external PASS model), Deposit Services immediately converts it to an instance of the internal model using a Model Builder.
DepositSubmission: internal representation of a PASS Submission.
DepositMetadata: metadata describing the submission, parsed from the "metadata blob" (Submission.metadata) and other Submission properties.
DepositSubmission is the central entity in the internal DS model. It brings entities and properties of the public PASS model into a model specific to producing a package. Many of the fields or classes are bibliographic in nature, with the DepositFile linking to the binary content of the submission (the files uploaded by the end user in the submission process). A secondary purpose of the internal DS model is to surface bibliographic metadata explicitly, since a primary responsibility of DS is to map bibliographic metadata to package metadata. Hard-coding bibliographic metadata in the internal model could be considered an anti-pattern.

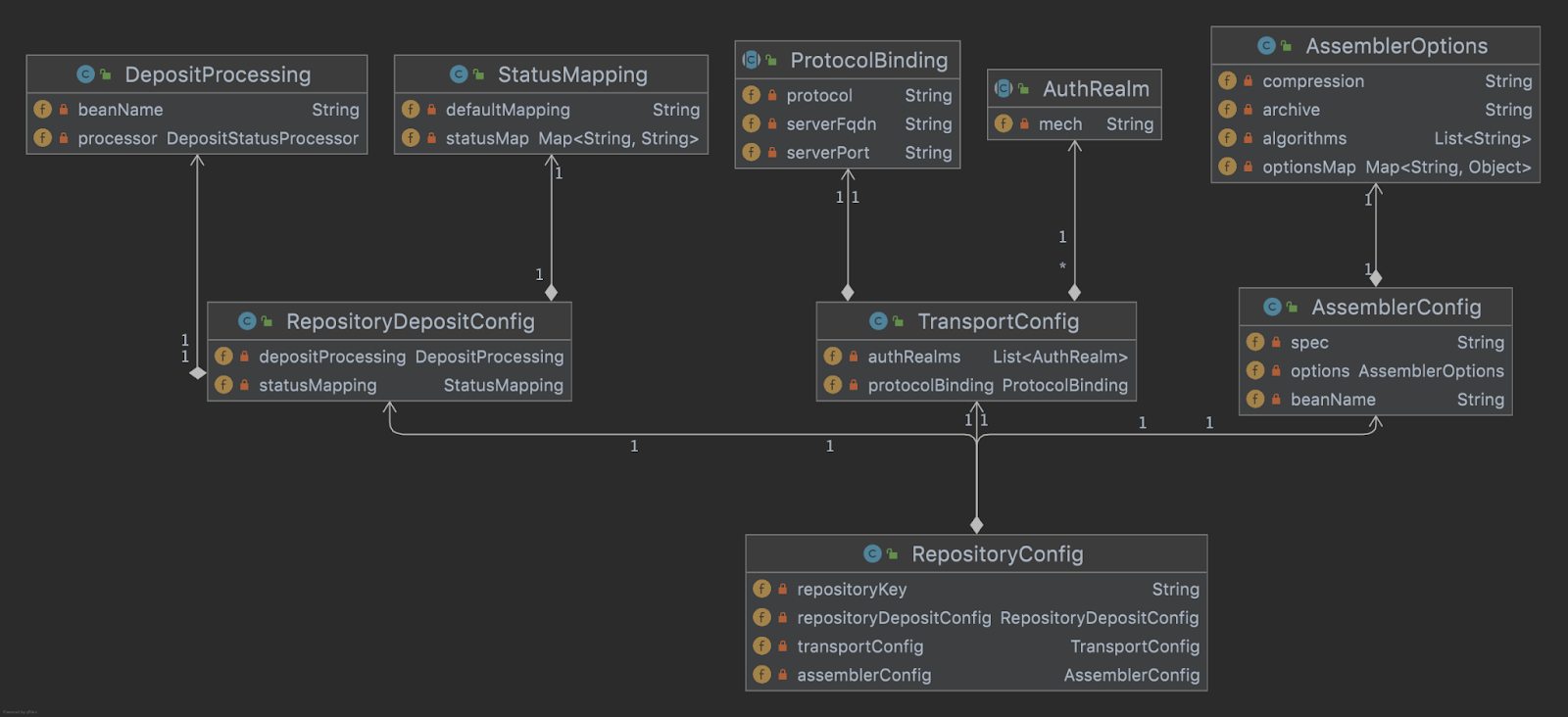

Packager: encapsulates configuration of the Assembler and Transport for every downstream repository in repositories.json. Each repository configured in repositories.json should to reference a Repository resource in the PASS repository.
RepositoryConfig: Java representation of a single repository configuration in repositories.json. The configuration for a repository includes directives for the transport protocol used for deposit (including authentication credentials), packaging specification used for deposit, and packaging options.
Each downstream repository is represented in the public PASS model as a Repository; each Repository carries a unique key, which is a short, human-readable string (e.g. jscholarship, dash, pmc). Each Repository.key is represented in the DS configuration model as RepositoryConfig.repositoryKey. When a Submission is processed, the configuration for the Repository is resolved by its key.
Assembler: responsible for creating and streaming the content (i.e. the files uploaded by the end-user and any metadata required by the packaging specification) of a Submission according to a packaging specification.
PackageStream: the content of a Submission to be deposited to a downstream repository as a stream, as opposed to bytes held in a buffer or stored on a file system.
Transport: an abstraction representing the physical protocol used to transfer the package stream from the PASS repository to the downstream repository.
CriticalRepositoryInteraction: CRI for short. Performs an optimistic locking (If-Match using an Etag) "critical" modification on a PASS resource, with a built-in retry mechanism when a modification fails. Each CRI has a pre-condition, critical section, and post-condition. The pre-condition must be met before the critical section is executed. The post-condition determines whether the application of the critical section was successful. The built-in retry mechanism re-uses the pre/post/critical functions in the case of a conflict.
Upon receipt of a Submission, the DepositSubmissionModelBuilder is invoked to produce an instance of DepositSubmission. The DepositSubmissionModelBuilder accepts a Submission ID for conversion to DepositSubmission.
Responsible for assembling the content of a submission into a streamable package (i.e. the Assembler returns a PackageStream instance). This includes:
Resolving the custodial content being deposited from the PASS repository.
Generating any metadata required by the packaging specification.
Generating any metadata required by the downstream repository.
Encapsulating all of the above into a stream of bytes that meets a packaging specification.
Implementing the Configurable Metadata Framework focuses on the support of pluggable Assemblers within Deposit Services; different Assembler implementations can include metadata required for their repository.
The term custodial resource is used throughout: a custodial resource is content that was uploaded by the end user for deposit to a downstream repository, such as their data sets, manuscripts, etc. Non-custodial resources (i.e. supplemental resources) include metadata describing the content, for example, BagIt tag files or DSpace METS XML files.
There are two abstract classes to help developers create Assembler implementations. The AbstractAssembler and ArchivingPackageStream. There is also a concrete class named SimplePackageStream that can be used for non-archive integrations.
The AbstractAssembler contains shared logic for building a list of custodial resources to be deposited. Concrete implementations accept the list of custodial resources (among other parameters, including the packaging specification) and produce the PackageStream.
The ArchivingPackageStream contains shared logic for assembling multiple files into a single zip, tar, or tar.gz file.
The SimplePackageStream contains the associated DepositSubmission, List of DepositFileResources, and returns metadata to be sent to repository.
PackageStream.Metadata is an interface that provides package-level metadata. The MetadataBuilder is a fluent API for creating physical package-level metadata, such as:
Packaging specification - a URI identifying the package specification used.
Package size (bytes) and its checksum.
The package name.
Mime type, compression used, and archive format.
The PackageStream.metadata() method returns the PackageStream.Metadata for a PackageStream instance. Because some metadata is unknown prior to streaming (e.g. the package size), the metadata returned by this method may be incomplete until after the stream has been read.
PackageStream.Resource is an interface that provides metadata describing a resource within the package. ResourceBuilder is a fluent API for creating physical metadata describing each resource (i.e. file) within the package:
File size (bytes)
Filename, including its path relative to the package root
Checksum and mime type
The PackageStream.resources() method answers an Iterator over each Resource in the PackageStream.
PackageProvider is an interface that is invoked by Deposit Services when a PackageStream is streamed to a repository via a Transport.
PackageProvider represents a streaming lifecycle interface that has three methods: start(...), packagePath(...), and finish(...). The start(...) method is invoked after the custodial resources have been assembled, but before streaming has started. The packagePath(...) method is invoked prior to streaming each custodial resource. The finish(...) method is invoked after all the custodial resources have been streamed, and provides an opportunity for the PackageProvider to add supplemental resources to the package being streamed.
For example, a BagIt PackageProvider would ensure that each custodial resource is pathed under <package root>/data when implementing packagePath(...). After the custodial resources are streamed, the BagIt PackageProvider would assemble and stream all the BagIt metadata: bagit.txt and any other tag files.
Responsible for transferring the bytes of a package (i.e., a PackageStream) to an endpoint. The Transport API is designed to support any transport protocol. Each downstream repository in repositories.json must be configured with a Transport implementation.
The Assembler and the PackageProvider create the package, and the Transport is the "how" of how a package is transferred to a downstream repository. Choosing the Transport to be used depends on the support of the downstream repository for things like SFTP, DSpace API (HTTP), InvenioRDM (HTTP) or other protocols.
For example, a BagIt Assembler and PackageProvider would produce BagIt packages. Those packages may be transported to downstream repositories using SFTP or a custom Transport implementation. The Transport to be used is a matter of configuration in repositories.json.
Supports the transport of the package stream using SFTP.
Supports the transport of the package stream that will be sent to a DSpace repository. This implementation uses HTTP to call the DSpace REST API.
Supports the transport of the package stream that will be sent to a InvenioRDM repository. This implementation uses HTTP to call the InvenioRDM REST API.
