Authentication & Authorization

PASS handles authentication through pass-core, which initiates SAML exchanges with a Shibboleth-supporting identity provider to authenticate users and establish sessions based on specific attributes. Authorization is role-based, assigning users either a SUBMITTER or BACKEND role, which dictates their permissions for accessing and modifying resources within the system.

Authentication

User Interface Authentication

Authentication for the user interface occurs through the use of an authentication service provider (SP), pass-core.

pass-core is configured to initiate a SAML exchange with a known identity provider (IDP) that supports Shibboleth. Although pass-core itself is not a Shibboleth service provider specifically, it is a generalized SAML service provider that can handle specific Shibboleth interactions with an IDP. In response to a valid authn assertion against an IDP, pass-core expects to receive and validate a Shibboleth SAML assertion against its assertion consumer service (ACS) URL. This assertion is expected to contain the following Shibboleth attributes:

'urn:oid:2.16.840.1.113730.3.1.241': 'Display name'
'urn:oid:1.3.6.1.4.1.5923.1.1.1.9': 'Scoped affiliation'
'urn:oid:0.9.2342.19200300.100.1.3': 'Email'
'urn:oid:2.16.840.1.113730.3.1.3': 'Employee id'
'urn:oid:1.3.6.1.4.1.5923.1.1.1.6': 'eduPersonPrincipalName'
'urn:oid:2.5.4.42': 'Given name'
'urn:oid:2.5.4.4': 'Surname'
'urn:oid:1.3.6.1.4.1.5923.1.1.1.13': 'Unique id'

These Shibboleth attributes are used to locate a user in pass-core and set up a user object on the session. pass-core, establishes a server side session and delivers a http-only cookie to the browser client which pass-ui will use to establish a client side session in the user interface. This http-only cookie is delivered back to pass-core by the user interface with every request.

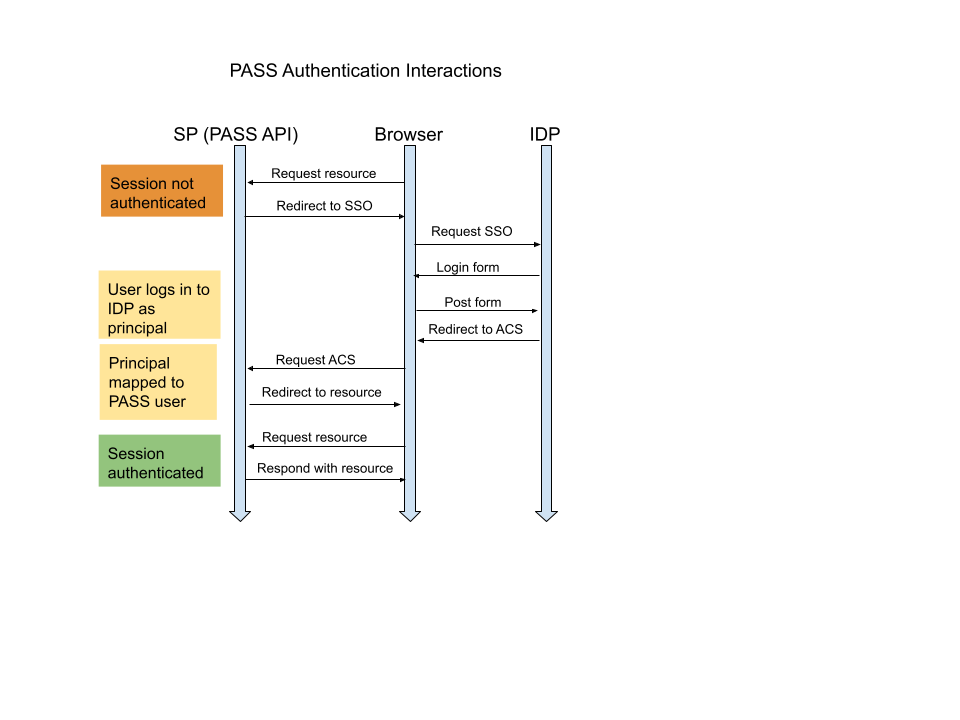

This series of interactions is depicted as follows:

Authentication Interactions Diagram

REST API Authentication

Every request to the REST API must be authenticated. If it is not authenticated, it is denied.

Requests to the API come from two types of clients, backend services and users. Requests from users must have already been authenticated with Shibboleth and have the headers specified above. If a request contains Shibboleth headers, it is considered trusted, authentication succeeds, it is associated with a user, and given the SUBMITTER role. If the user does not exist, it is created. If the user does exist, it is updated to reflect the information in the headers. If the request does not contain the Shibboleth headers, it undergoes HTTP basic authentication. There is one HTTP basic user defined with the BACKEND role for the backend services.

Mapping from Shibboleth attributes to PASS users:

• displayName: Display name

• email: Email

• firstName: Given name

• lastName: Surname

• username: Eppn

• affiliations: DOMAIN, all values

• locatorIds: UNIQUE ID, INSTITUTIONAL_ID, EMPLOYEE_ID

• role: SUBMITTER

The DOMAIN is the value of the Eppn attribute after @. The UNIQUE_ID is DOMAIN:unique-id: joined to the value of the unique id attribute before @. The INSTITUTIONAL_ID is DOMAIN:eppn joined to the value of the Eppn attribute before the @. The EMPLOYEE_ID is DOMAIN:employeeid joined to the value of the Employee id value.

The locatorIds are used to find an existing user in the system. If any of the locatorIds match an existing user, the user is considered to match.

Example mapping

Shibboleth attributes:

• Eppn: [e-mail]

• Display name: Sally M. Submitter

• Mail: [e-mail]

• Given name: Sally

• Surnamen: Submitter

• Affiliation: [e-mail]

• Employee id: 02342342

• Unique id: [e-mail]

Resulting User:

• affiliation: [e-mail], johnshopkins.edu

• displayName: Sally M. Submitter

• email: [e-mail]

• firstName: Sally

• lastName: Submitter

• locatorIds: johnshopkins.edu:unique-id:sms2323, johnshopkins.edu:eppn:sallysubmitter, johnshopkins.edu:employeeid:02342342

• roles: SUBMITTER

• username: [e-mail]

Authorization

Requests either have a SUBMITTER or BACKEND role. The BACKEND can do everything. The SUBMITTER is restricted to creating and modifying certain objects in the data model. The SUBMITTER has full access to all other services.

Object permissions:

Type	Create	Read	Update	Delete
Submission	BACKEND or SUBMITTER	any	BACKEND or owns submission	BACKEND or owns submission
SubmissionEvent	BACKEND or owns submission	any	BACKEND	BACKEND
File	BACKEND or owns submission	any	BACKEND or owns submission	BACKEND or owns submission
Publication	BACKEND or owns submission	any	BACKEND or owns submission	BACKEND or owns submission
*	BACKEND	any	BACKEND	BACKEND

The permissions are all role based, except "owns submission". By "owns submission" means that the user is the submitter or a preparer on a submission associated with the object. A submitter is the target of the submitter relationship on a Submission. A preparer is the target of the preparers relationship on a Submission. SubmissionEvent and File are associated with a submission through a submission relationship. The intent is to make sure submitters can only modify submissions which they have created or are explicitly allowed to help on.
